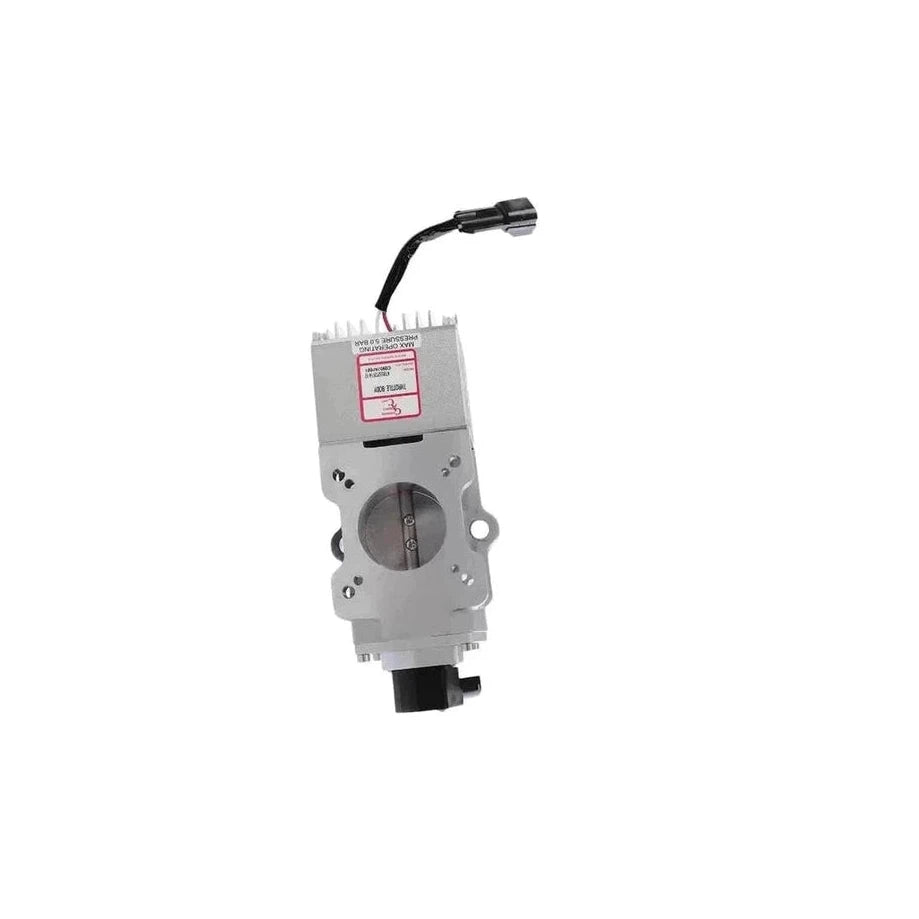

ATB552T2F14 55 mm Integrated Actuators/Throttle Body with Feedback Sensor
Price on request
Tell us what you need and we'll confirm price and availability, usually within one working day.
- In business since 1927
- Backed by our Auckland workshop
- Capricorn preferred supplier
- Delivery across NZ and worldwide
Shipping & delivery
Freight is calculated at checkout by weight and volume. Orders over 25 kg or 2.5 m³: we'll email the freight cost after you order.
Standard delivery: 2–5 working days. Rural: 4–6 working days.
Click & Collect: we'll call to arrange a time at 77 Leonard Road, Mount Wellington, Auckland.
Outside New Zealand? Contact us for a freight quote.
Returns & warranty
Returns are handled under our refund policy. Your rights under the Consumer Guarantees Act are not affected.
For warranty claims, email sales@simmsdiesel.co.nz with proof of purchase and photos, and contact us before fitting a replacement. See warranty.
Product details
Description
The ATB552T2F14 is a 55 mm integrated actuator and throttle body featuring a 12/24 V DC position feedback sensor (AB). Designed for high-temperature environments up to 250 ºF (125 ºC), it offers a cost-effective, maintenance-free, and compact solution. Its rapid response to transient load changes and versatile mounting options—requiring no mechanical linkage or brackets—allow flexible installation for engines, manifolds, and fuel mixers. Equipped with idle and maximum adjustment screws, it also provides options for corrosive environments and includes a Packard connector without a mating counterpart.
