Toyota 1HD-TB Injector Washer Kit
Price on request
Tell us what you need and we'll confirm price and availability, usually within one working day.
- In business since 1927
- Backed by our Auckland workshop
- Capricorn preferred supplier
- Delivery across NZ and worldwide
Shipping & delivery
Freight is calculated at checkout by weight and volume. Orders over 25 kg or 2.5 m³: we'll email the freight cost after you order.
Standard delivery: 2–5 working days. Rural: 4–6 working days.
Click & Collect: we'll call to arrange a time at 77 Leonard Road, Mount Wellington, Auckland.
Outside New Zealand? Contact us for a freight quote.
Returns & warranty
Returns are handled under our refund policy. Your rights under the Consumer Guarantees Act are not affected.
For warranty claims, email sales@simmsdiesel.co.nz with proof of purchase and photos, and contact us before fitting a replacement. See warranty.
Product details
Complete aftermarket washer kit for reinstalling injectors on the Toyota 1HD-TB turbo diesel — the six-cylinder engine found in the 80 Series Land Cruiser from August 1992 onwards. Like the earlier 1HD-TA, this engine does not use a separate rubber injector body seal, so this kit is washers-only. Every time injectors come out for servicing or bench testing, both the base washers and leak-off washers should be replaced as a matter of course. Fitting worn washers back in is one of the most common causes of compression leaks, combustion gas blow-by around the injector bore, and injector performance issues after a refit.
What's in the kit

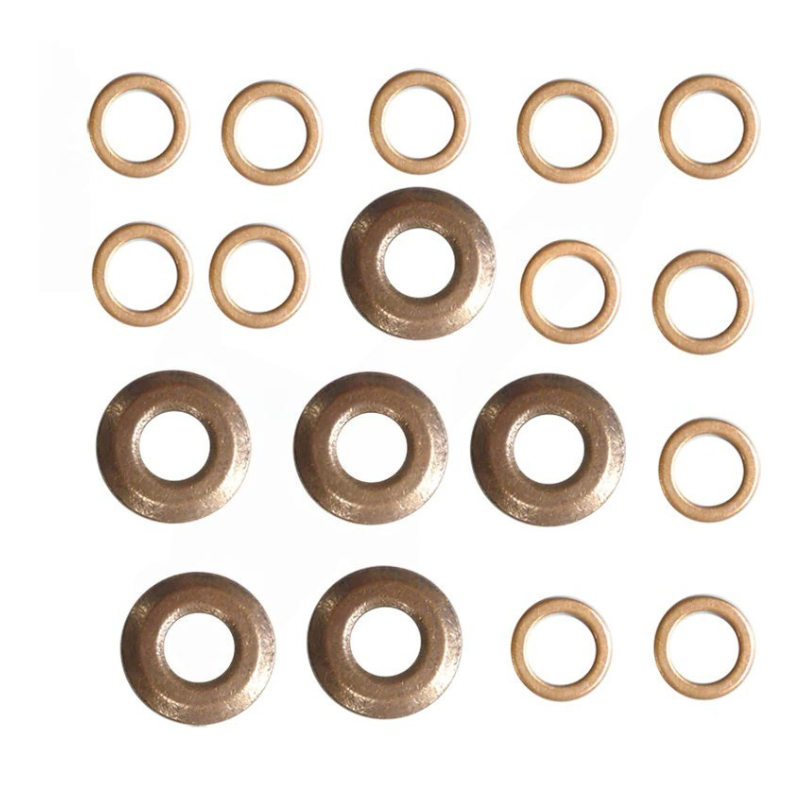

Injector base washers and leak-off washers — enough to complete a full injector refit on a 1HD-TB engine.
Specifications
- Base washer OD: 17mm
- Base washer ID: 7.5mm
- Base washer thickness: 3.5mm
- Leak-off washer OD: 12mm
- Leak-off washer ID: 8mm
- Leak-off washer thickness: 1mm
Suits
- Toyota 1HD-TB diesel engines (08/1992 onwards)
- Toyota Land Cruiser 80 Series (HDJ80, HDJ81)
Not sure if this kit suits your vehicle? Get in touch with your engine details and we'll confirm fitment before you order.
Note: minor variations in colour or finish can occur between production batches. Please double-check dimensions against your existing washers before fitting.
