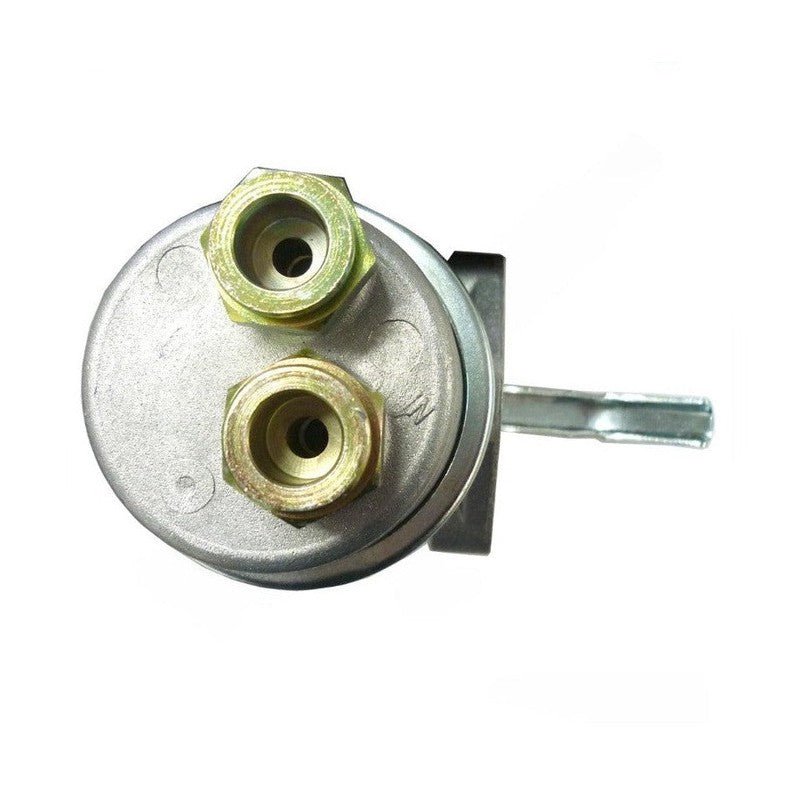

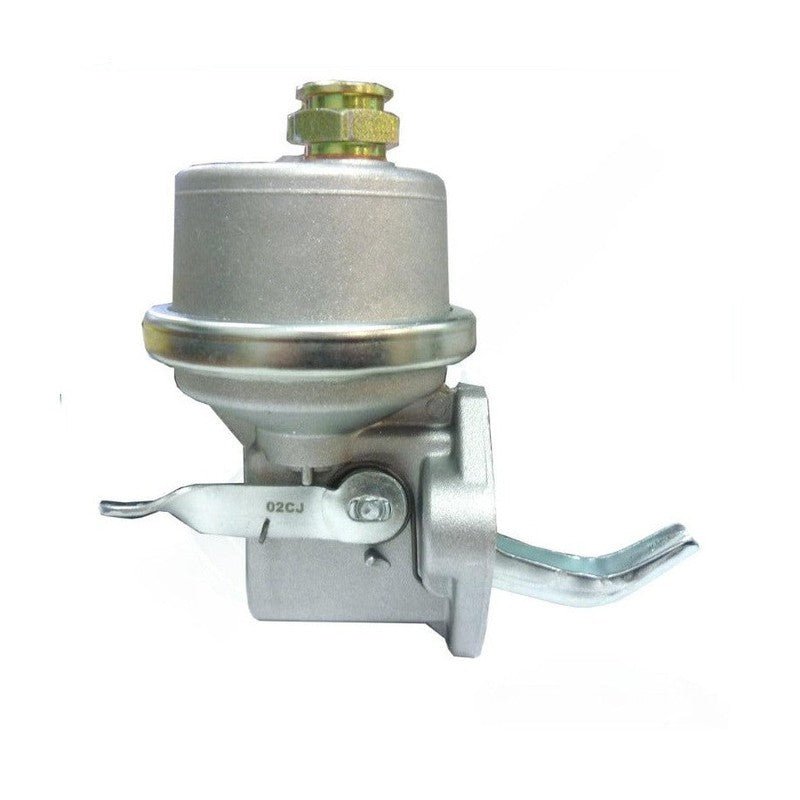

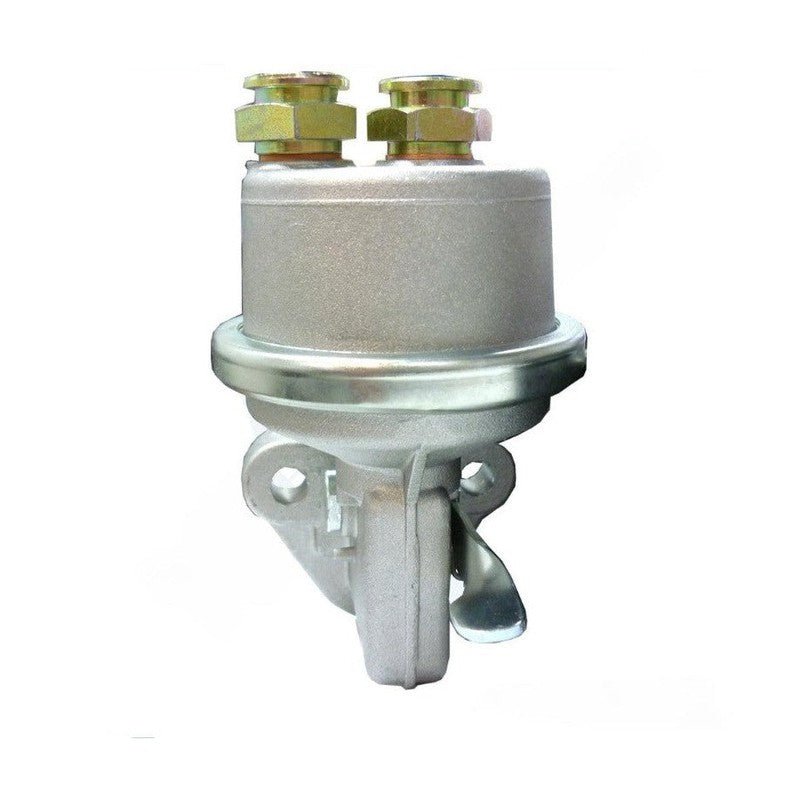

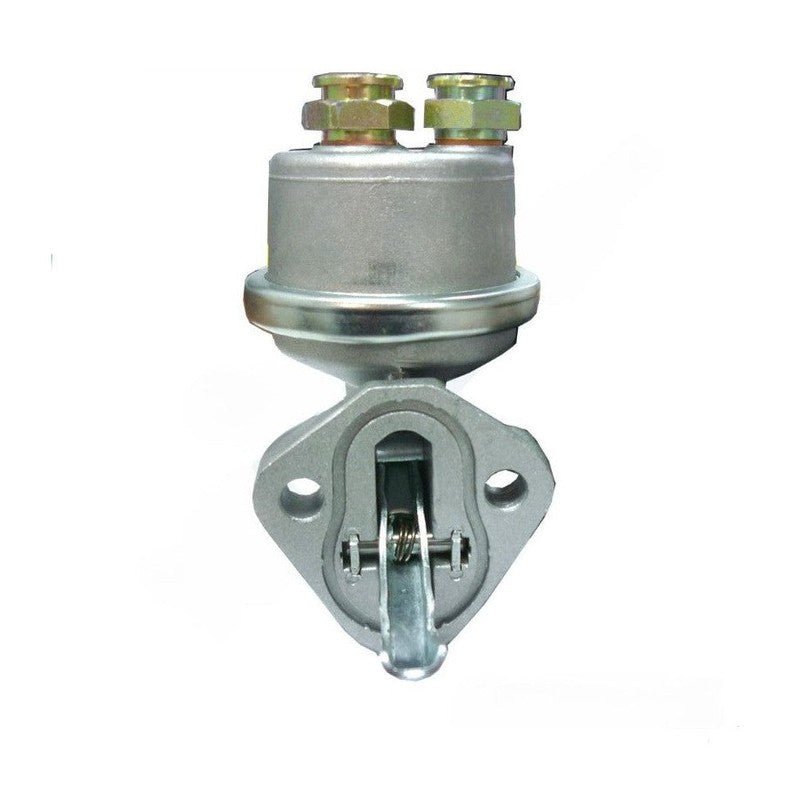

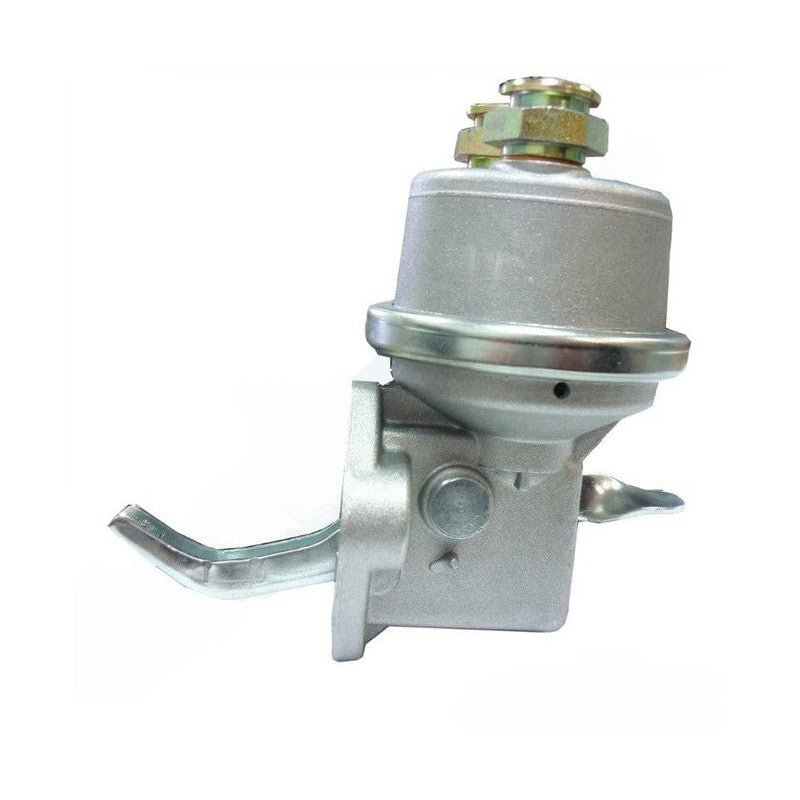

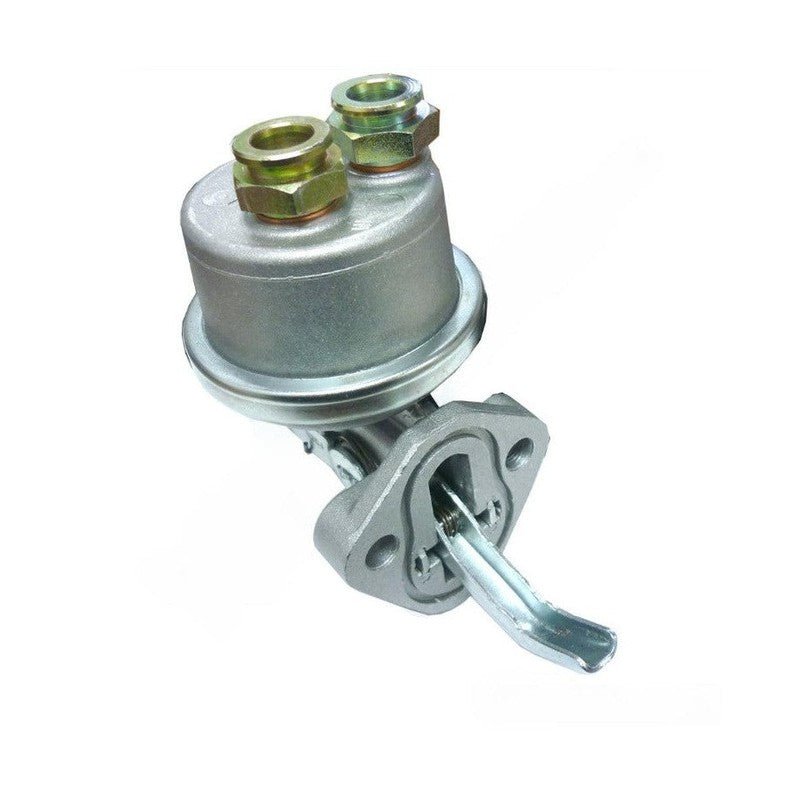

2723 Lift Pump (Iveco/Case)

SKU: 2723

TOTAL

$170.00

ENQUIRE NOW

Secure, Safe Checkout

Refunds Within 14 Days

Operating Since 1920

Shipping & Delivery

Shipping Rules

  • If an order exceeds 2.5m3 or 25kg we will email the cost for freight after your order has been place. If you want to know the cost prior please email us!
  • All prices on our website exclude freight
  • We only deliver to New Zealand Street addresses.
  • Shipping cost is calculated at the checkout as it is based on volume and weight and will be shown before purchasing.
  • We do our best to ensure products have a fair rate imposed upon them. If you believe that we’ve over charged you please contact us

Processing and Dispatch:

When you place an order with us you will be notified with a confirmation email acknowledging your order has been received and your payment has been processed.
Once your product/s has been dispatched, you will receive a tracking number so you can monitor your order’s delivery progress
Please ensure your shipping address and order information is correct before placing an order as we cannot guarantee we can make
adjustments to orders before shipment.

Estimated Delivery times:

  • Standard Delivery: 2-5 working days
  • Rural Delivery 4-6 working days.

Delivery times may vary between islands.
For all pick up orders placed on the website, we will contact you by phone to confirm that we are processing your order and arrange a date and time for collection.

Delivered but not Received:
If your package was marked “Delivered” by the Courier Service but you did not receive it, we recommend contacting the postal carrier with your track and trace number. Your postal carrier can track where the package was dropped off via GPS when scanned.

International orders:
Please email us for international delivery charges as we are currently trying to negotiate rates.

Terms & Conditions

Simms diesel offer a  12-month warranty or (20,000 km) which is given from date of invoice on new parts and exchange units.


Please notify us  of the warranty issue when first known.  Please do not apply warranty without our approval.


The warranty only applies to those parts that are deemed defective and will be replaced, credited or refunded (at the supplier’s discretion) at no charge.
The defect must not result from any of the following:


The following conditions apply:

  • There must be no modification or adjustment to the product
  • Incorrect operation or use of the product
  • Any contamination of the product by fuel, oil or other impurities
  • Misuse of the product in respect to the product specifications
  • Incorrect installation of product

Please note the warranty provided applies to parts only not labour costs.


Claim Procedure

If a product is suspected to be faulty or defective, notify us at sales@simmsdiesel.co.nz  Please note proof of purchase must be given with an explanation of issue with photo evidence (if available). We can then investigate and determine the outcome.

PRODUCT INFO

  • Description

Part Number

BCD BCD2723, 2723

Case 84268475, 2830122, 2830266
Cummins 504380241
Star 203.762

Description

Lift Pump (Iveco/Case)
Fitting In: 12mm
Fitting Out: 12mm

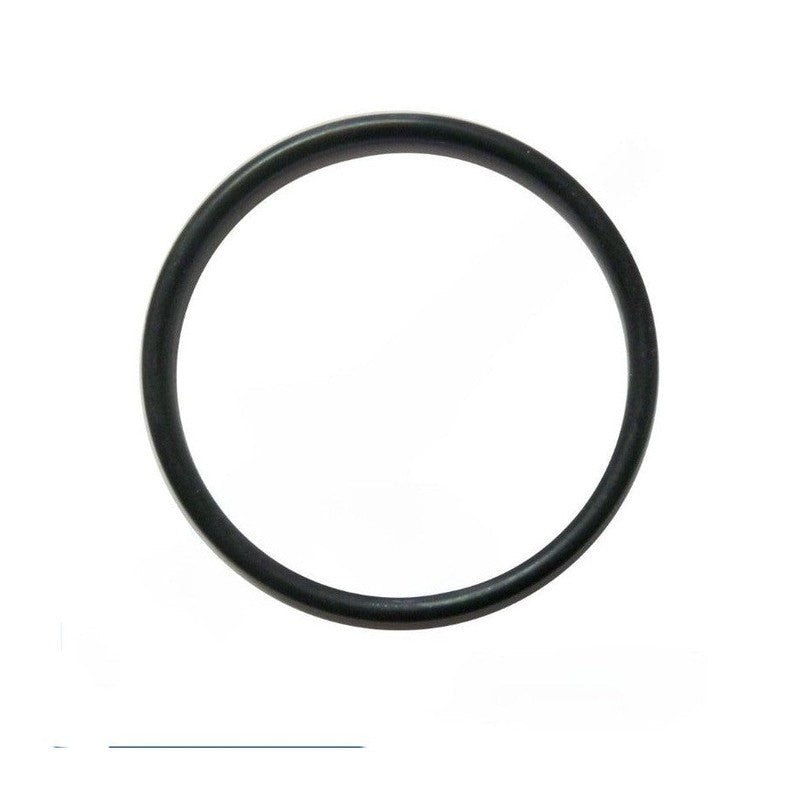

Gasket: Included

Application

Case 580M, 580SM, 590SM (Series 2) Consolidated Diesel (CDC) - 445/M2, 445T/M2 - 4.5 L  02/04-
Case 750K (Seies 2, 3) SConsolidated Diesel (CDC) - 445T/M2 - 4.5 L  01/05-
Case JX1080U, JX1090U, JX1100U Consolidated Diesel (CDC) -   01/04-
Case JX1085C, JX1095C Consolidated Diesel (CDC) - 445/M2 - 4.5 L  10/05-
Case JX1095N, JX1095V Consolidated Diesel (CDC) - 445/M2 - 4.5 L  -
Case Motor Series Case Family III Consolidated Diesel (CDC) - 4, 6 cyl 2V  -
Case P70 (Tier 2) FPT Industrial - F4GE0404A  11/07-01/09
Case P70 (Tier 3) FPT Industrial - F4GE9454J  11/08-
Cummins Motor Series NEF Cummins - 4, 6 cyl 2V  -
Fiat-Kobelco E145W, E165 FPT Industrial - F4GE9684E  01/03-12/04
FPT Industrial Industrial Motor FPT Industrial - F4GE9684E  -
FPT Industrial Motor Series NEF FPT Industrial - N45, N67  -
Iveco Marine Motor Iveco - N45 MNA M10  -
Iveco Motor Series NEF Iveco - 4, 6 cyl 2V (N45..,N67M..)  -
New Holland D75, D85, D95 FPT Industrial - F4GE9684E  01/04-
New Holland E145, E175 FPT Industrial - F4GE9684E  01/05-
New Holland E215B (Tier 3, Brazil) FPT Industrial - F4GE9684E  01/07-
New Holland Motor Series F4 FPT Industrial - F4CE9484  -
New Holland Motor Series F4 FPT Industrial - F4GE9484  -
New Holland T6000 Delta (Series) Iveco - NEF 4, 6 cyl - 4.5-6.7 L  -
New Holland T6000 Plus (Series) Iveco - NEF 4, 6 cyl - 4.5-6.7 L  -
