5845B160NG Aftermarket Delphi 1/2" x 20UNF Filter Assembly (GLASS BASE) - Simms Diesel
Part no. 5845B160NGAftermarketDelphi

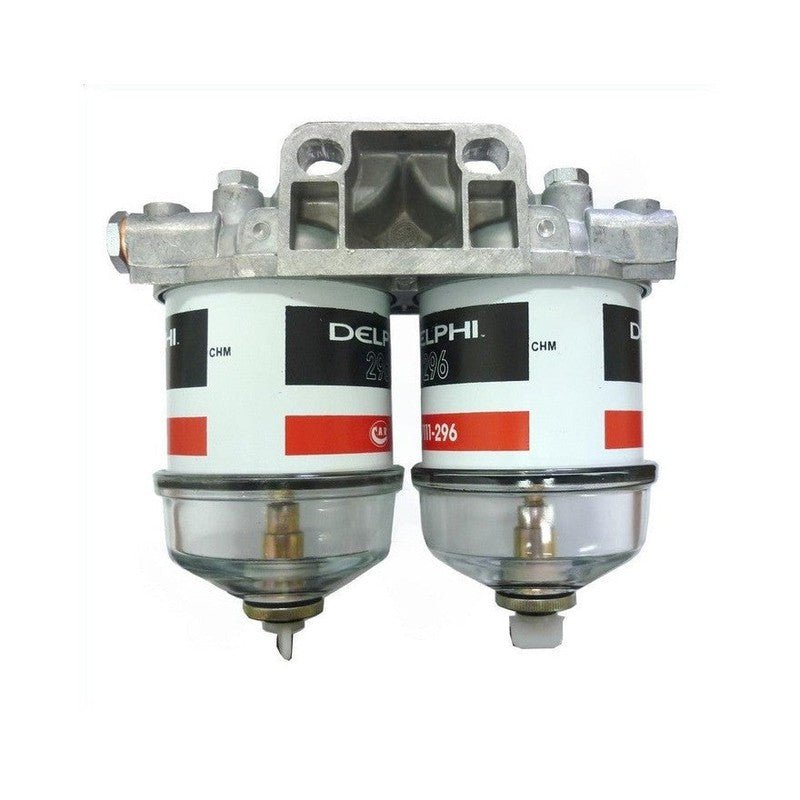

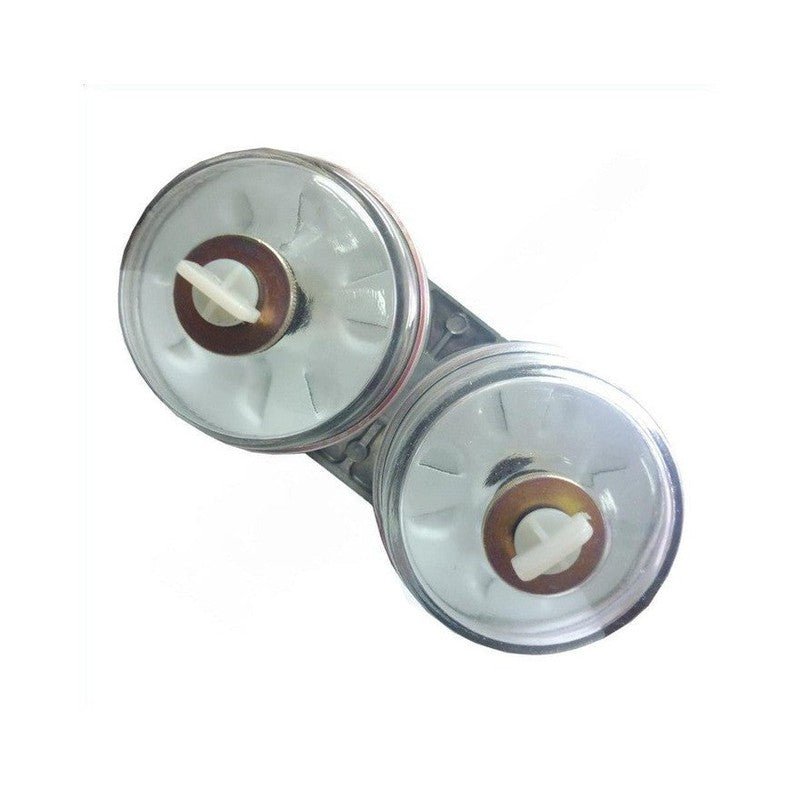

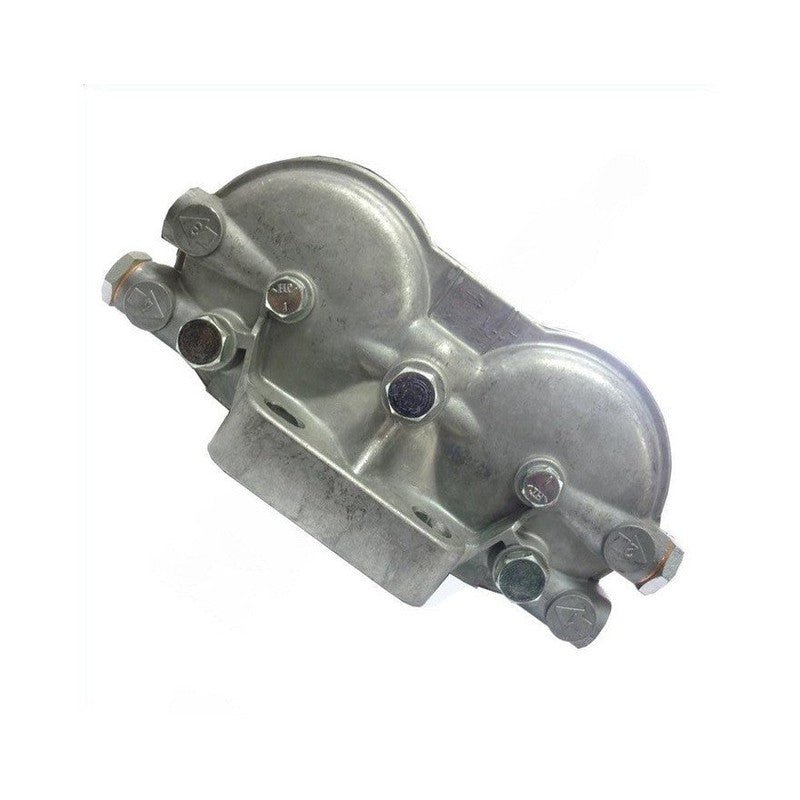

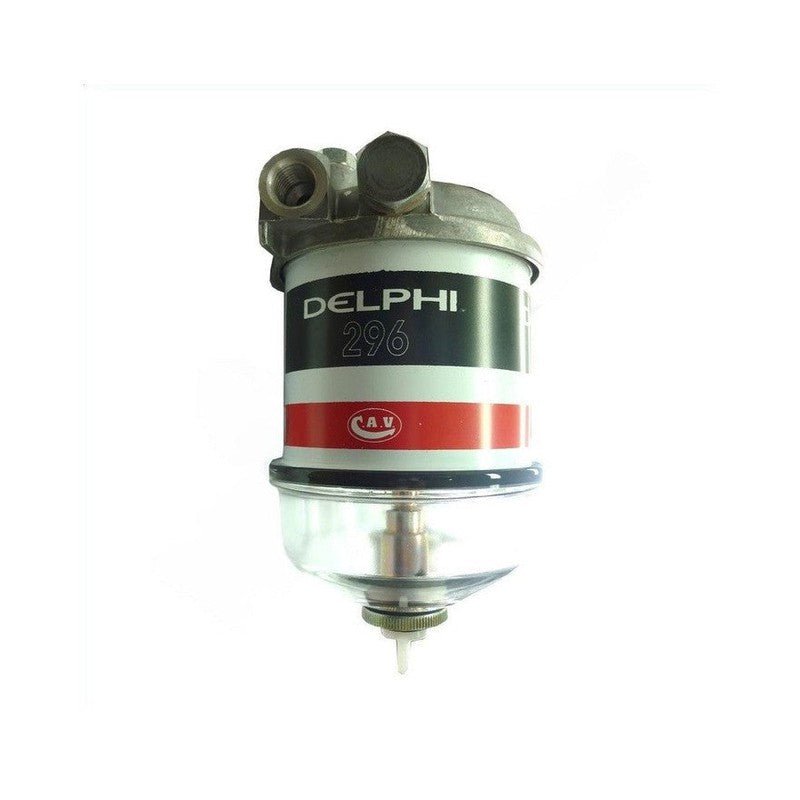

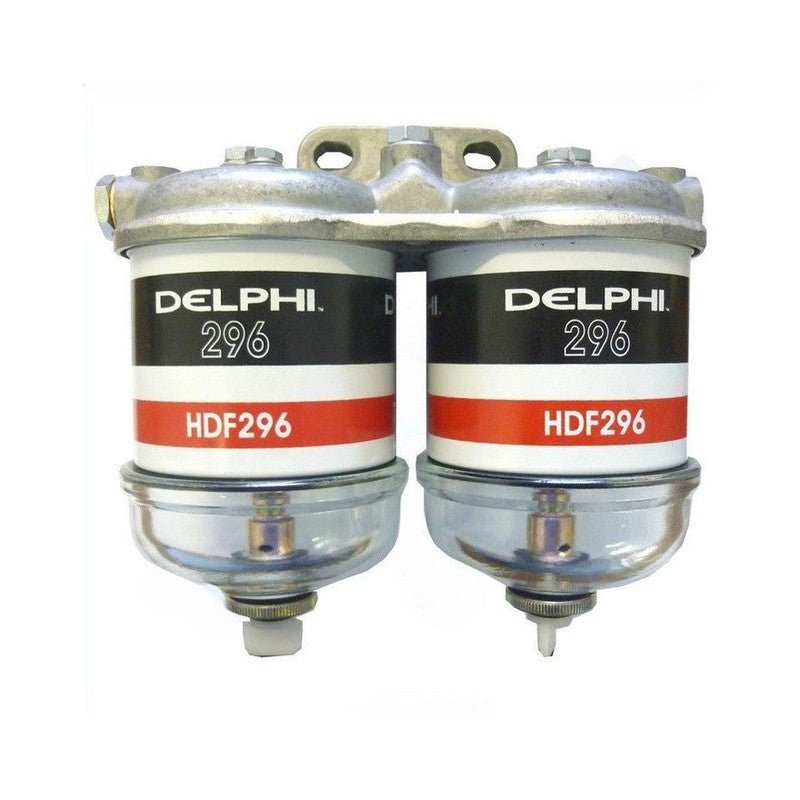

1/2" x 20 UNF filter assembly to suit Delphi (glass base)

$195.00 NZD incl. GST

In stockFreight calculated at checkout

Aftermarket part

This is not a genuine part, and it is not made, supplied or approved by the vehicle or engine manufacturer. Vehicle names and manufacturer part numbers are shown only to identify fitment. Check compatibility before fitting, or ask us.

Not sure it fits?Send us your vehicle or engine details and we'll confirm before you order.
Ask about this part
Shipping & delivery

Freight is calculated at checkout by weight and volume. Orders over 25 kg or 2.5 m³: we'll email the freight cost after you order.

Standard delivery: 2–5 working days. Rural: 4–6 working days.

Click & Collect: we'll call to arrange a time at 77 Leonard Road, Mount Wellington, Auckland.

Outside New Zealand? Contact us for a freight quote.

Returns & warranty

Returns are handled under our refund policy. Your rights under the Consumer Guarantees Act are not affected.

For warranty claims, email sales@simmsdiesel.co.nz with proof of purchase and photos, and contact us before fitting a replacement. See warranty.

Product details

Part number

Delphi 5845B130, 5845B540, 5848B130, 5845B560, 2656818
Ford 2656818
Massey Ferguson 818665599, 1447363M91

Application

Various Applications, where the unit offers efficient filtration together with effective water separation and retention.

Description

Fuel entering the unit passes to the top of the filter element and then downwards through the element.  Fine pores in the filter paper isolate and retain solid particules. Fine water droplets, which are forced through the pores, agglomerate into large droplets which are then deposited by sedimentation in the base.  Clean fuel then flows up the centre tube of the element and out of the unit.
Inlet Size: 1/2"x20UNF
Outlet Size: 1/2"x20UNF
Filter: Genuine Delphi HDF-296
Flow Rate: 45/10 (litre/gallons per hour)
