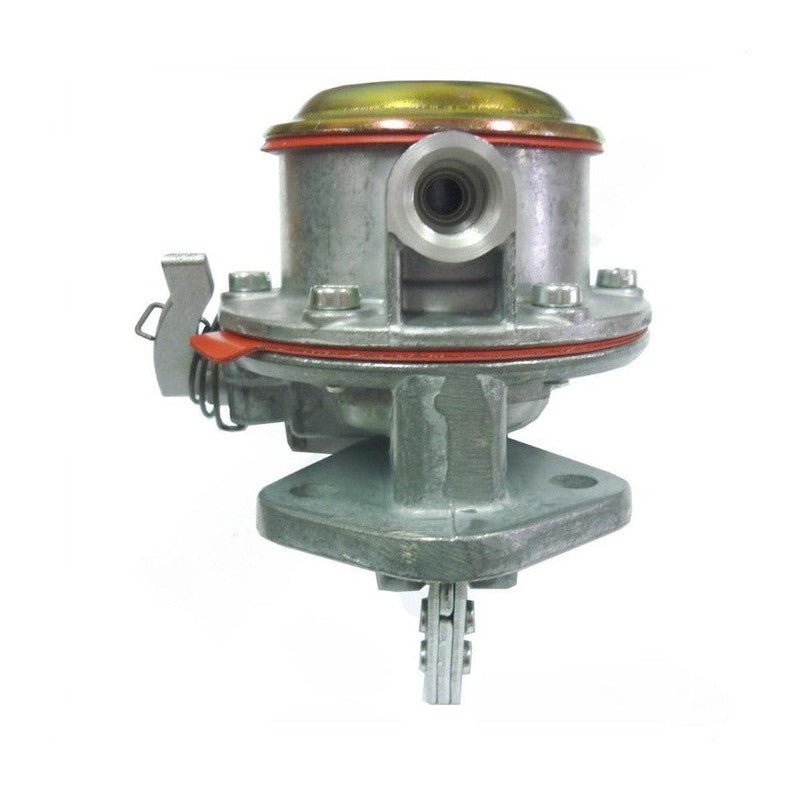

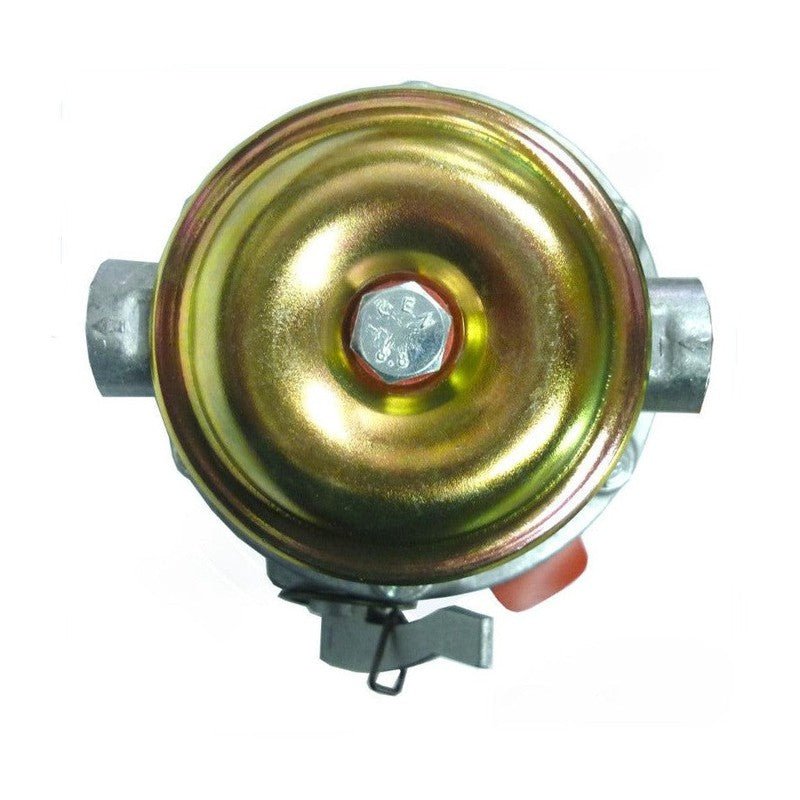

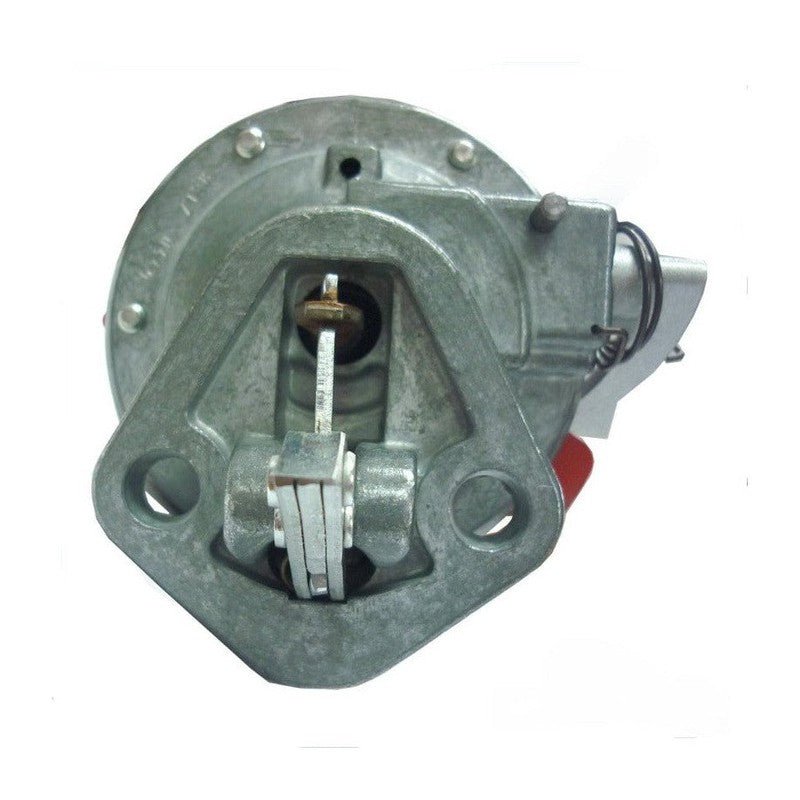

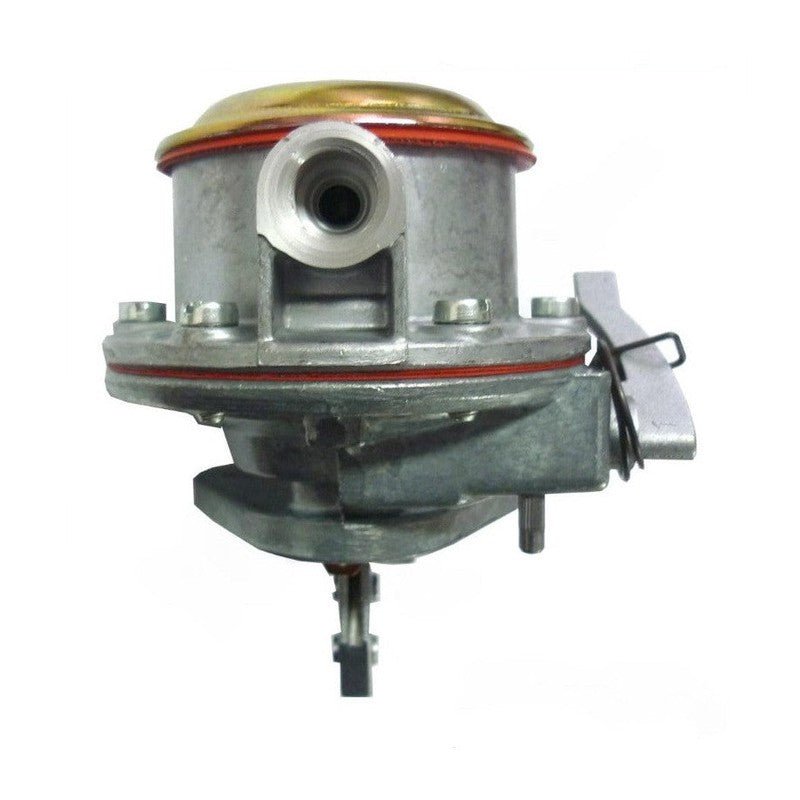

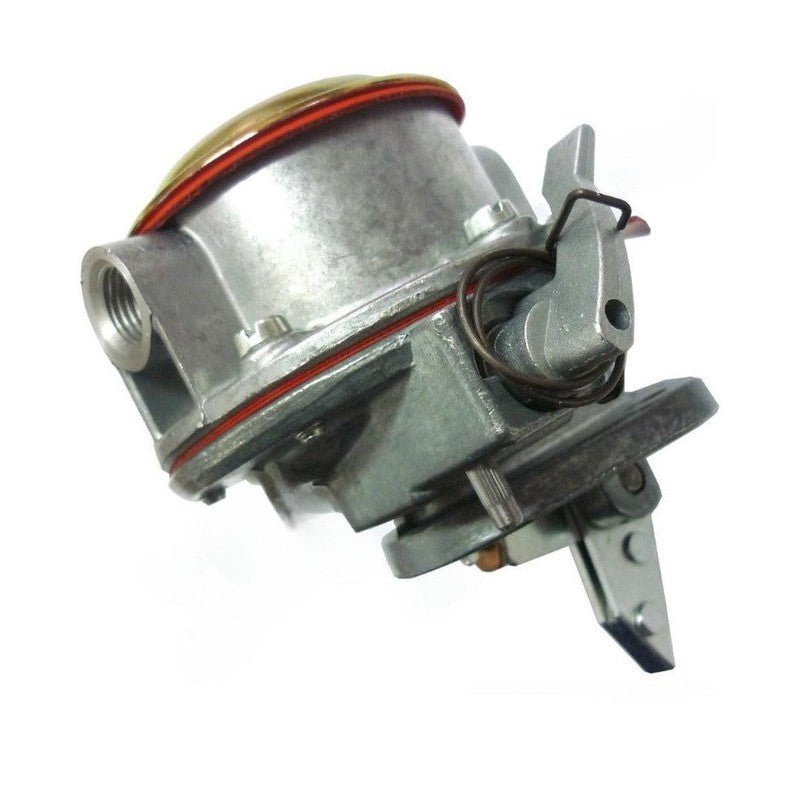

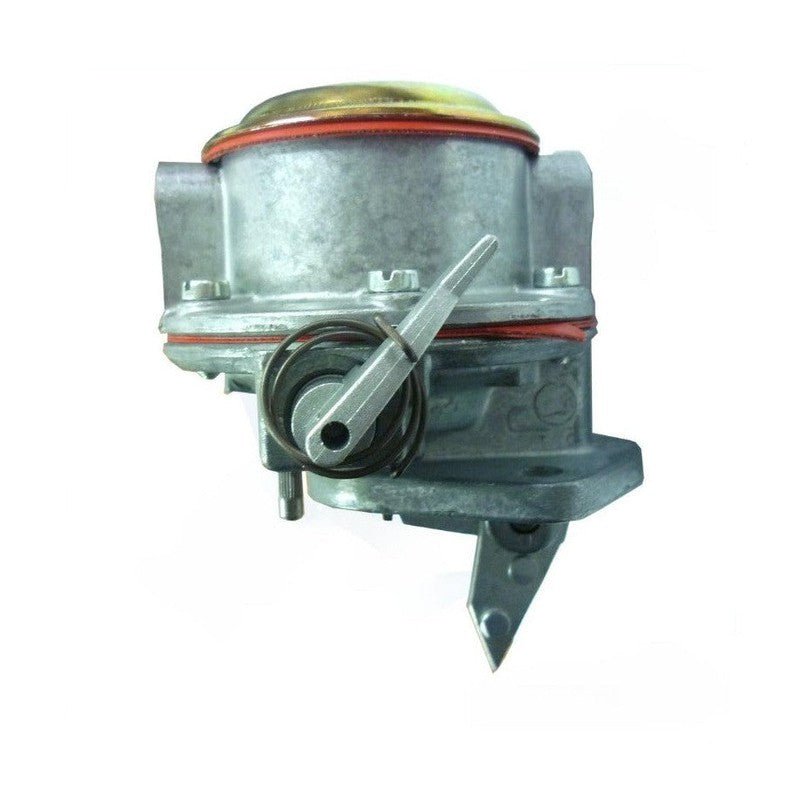

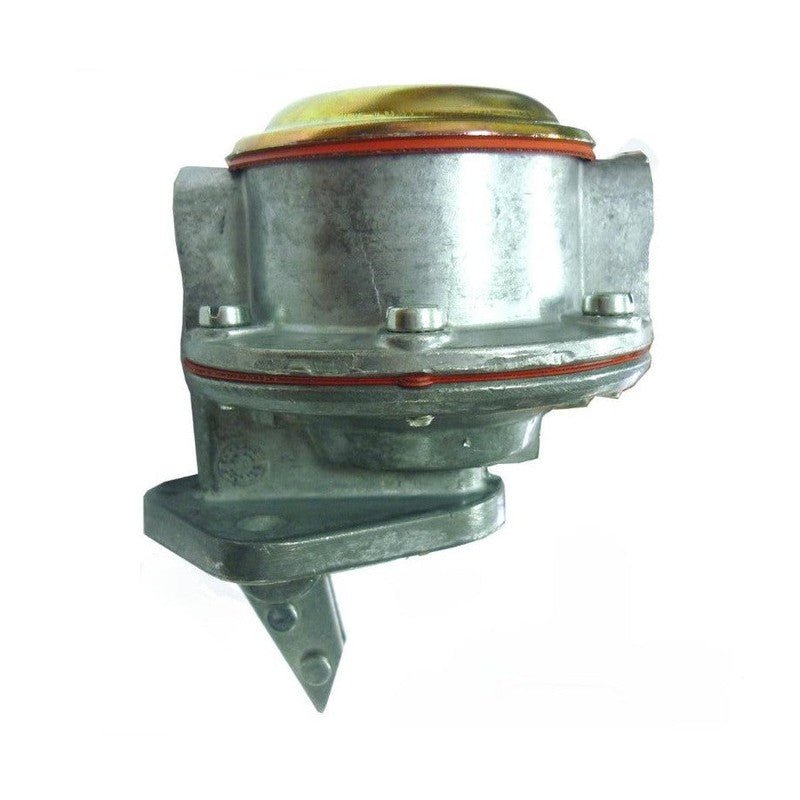

HFP314 Lift Pump (Leyland)

SKU: HFP314

TOTAL
$125.00

ENQUIRE NOW

Secure, Safe Checkout

Refunds Within 14 Days

Operating Since 1920

Shipping & Delivery

Shipping Rules

  • If an order exceeds 2.5m3 or 25kg we will email the cost for freight after your order has been place. If you want to know the cost prior please email us!
  • All prices on our website exclude freight
  • We only deliver to New Zealand Street addresses.
  • Shipping cost is calculated at the checkout as it is based on volume and weight and will be shown before purchasing.
  • We do our best to ensure products have a fair rate imposed upon them. If you believe that we’ve over charged you please contact us

Processing and Dispatch:

When you place an order with us you will be notified with a confirmation email acknowledging your order has been received and your payment has been processed.
Once your product/s has been dispatched, you will receive a tracking number so you can monitor your order’s delivery progress
Please ensure your shipping address and order information is correct before placing an order as we cannot guarantee we can make
adjustments to orders before shipment.

Estimated Delivery times:

  • Standard Delivery: 2-5 working days
  • Rural Delivery 4-6 working days.

Delivery times may vary between islands.
For all pick up orders placed on the website, we will contact you by phone to confirm that we are processing your order and arrange a date and time for collection.

Delivered but not Received:
If your package was marked “Delivered” by the Courier Service but you did not receive it, we recommend contacting the postal carrier with your track and trace number. Your postal carrier can track where the package was dropped off via GPS when scanned.

International orders:
Please email us for international delivery charges as we are currently trying to negotiate rates.

Terms & Conditions

Simms diesel offer a  12-month warranty or (20,000 km) which is given from date of invoice on new parts and exchange units.


Please notify us  of the warranty issue when first known.  Please do not apply warranty without our approval.


The warranty only applies to those parts that are deemed defective and will be replaced, credited or refunded (at the supplier’s discretion) at no charge.
The defect must not result from any of the following:


The following conditions apply:

  • There must be no modification or adjustment to the product
  • Incorrect operation or use of the product
  • Any contamination of the product by fuel, oil or other impurities
  • Misuse of the product in respect to the product specifications
  • Incorrect installation of product

Please note the warranty provided applies to parts only not labour costs.


Claim Procedure

If a product is suspected to be faulty or defective, notify us at sales@simmsdiesel.co.nz  Please note proof of purchase must be given with an explanation of issue with photo evidence (if available). We can then investigate and determine the outcome.

PRODUCT INFO

Part Number

AC 461-179, 461-314, 461-261, 461-314A, 7990449, 7990219, 7971399

Albion  LM831637
BCD BCD1797, BCD1973, 1797, 1973
Delphi HFP314, 508203-2, A504827, A512546/2
Ford D 8NN 9350 AA, D 8NN 9350 AB
General Motors 25061542, 25061585, 25066382, 25066388
Sisu 836012114
Volvo 4880294

Description

Lift Pump (Leyland)
Thread In: 1/2"x20UNF
Thread Out: 1/2"x20UNF

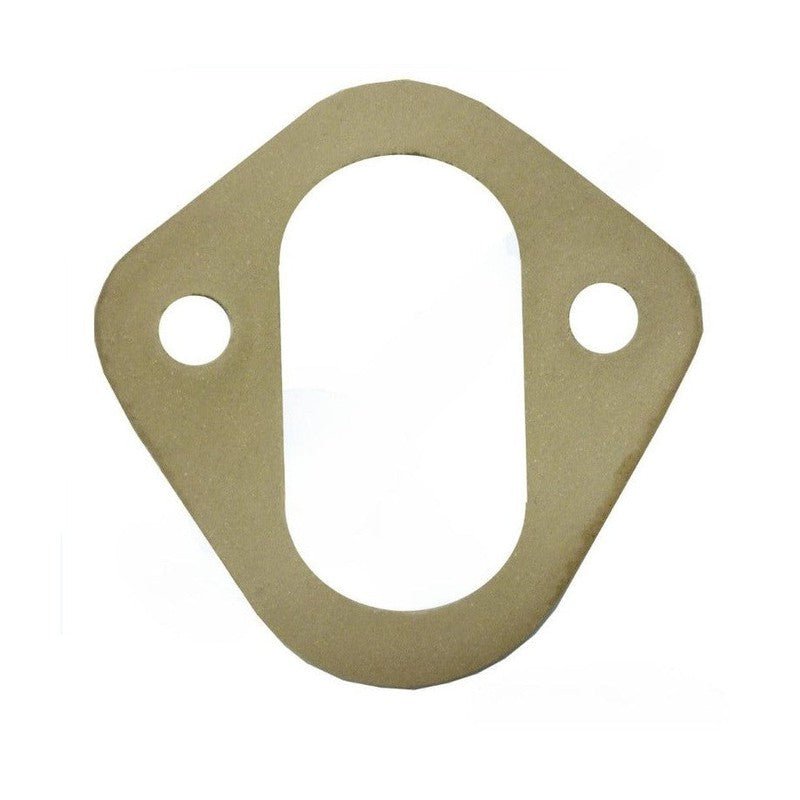

Gasket: Included

Application

Bristol LH Series Leyland - 401, 410  -
CAV (Lucas, Delphi) Leyland Equipment Leyland - OE 370, 400  -
Ford (Tractor) 3000, 5000, 7000, 8000
 -
Ford (Tractor) 6600, 6610    -
Ford (Tractor) 7610, 7710
 -
Ford (Tractor) Fordson Super Major    08/61-1964
Ford (Tractor) Tractor    -
Ford (Tractor) TW10, TW20, TW30    -
Leyland Bison 500  1970-
Leyland Boxer Leyland - 6/98 Turbo Diesel  1973-
Leyland Boxer BX 1425, BX 20F Leyland - 6/98 Turbo Diesel  -
Leyland Buffalo 500  -
Leyland Chieftian 410 Turbo  -
Leyland Clydesdale 301  -
Leyland Clydesdale ECD 23, ECD 27 401  -
Leyland Lynx 26T, 28T 500  1970-
Leyland Industrial Motor Leyland - 400 (CAV Equip.)  -
Leyland Industrial Motor 400 (Simms P4654, P4692)  -
Leyland Industrial Motor 500  1971-
Leyland National 502  -
Leyland Octopus 30T 502  1971-
Leyland Reiver 401, 410  1971-
Leyland Viking EVK 55 401  -
Shelvoke Intapak, PT Revopak Leyland - 401, 410  -
Sisu Diesel BX-84 BO City 500 Turbo Leyland  -
Volvo-BM 4300 Volvo-BM - TD 42 - 4.2 L  1977-
Volvo-BM BM 650, BM 700 Volvo-BM - D 42 A, TD 42 - 4.2 L  -
Volvo-BM GM 616 Volvo-BM - D 42 - 4.2 L  1974-1976
Volvo-BM LM 621, LM 641, LM 642 Volvo-BM - D 42 - 4.2 L  1979-
