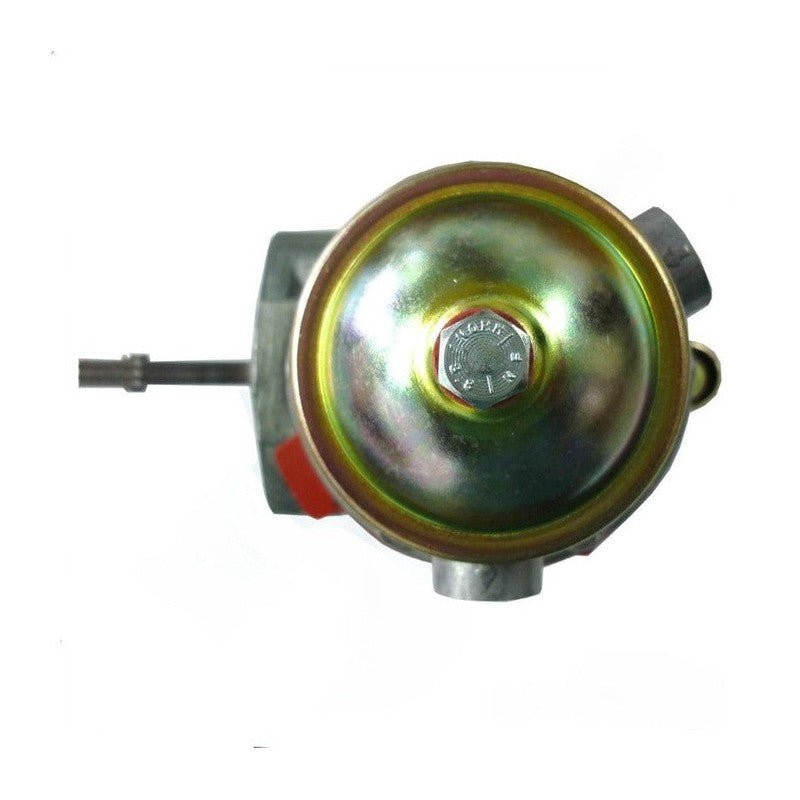

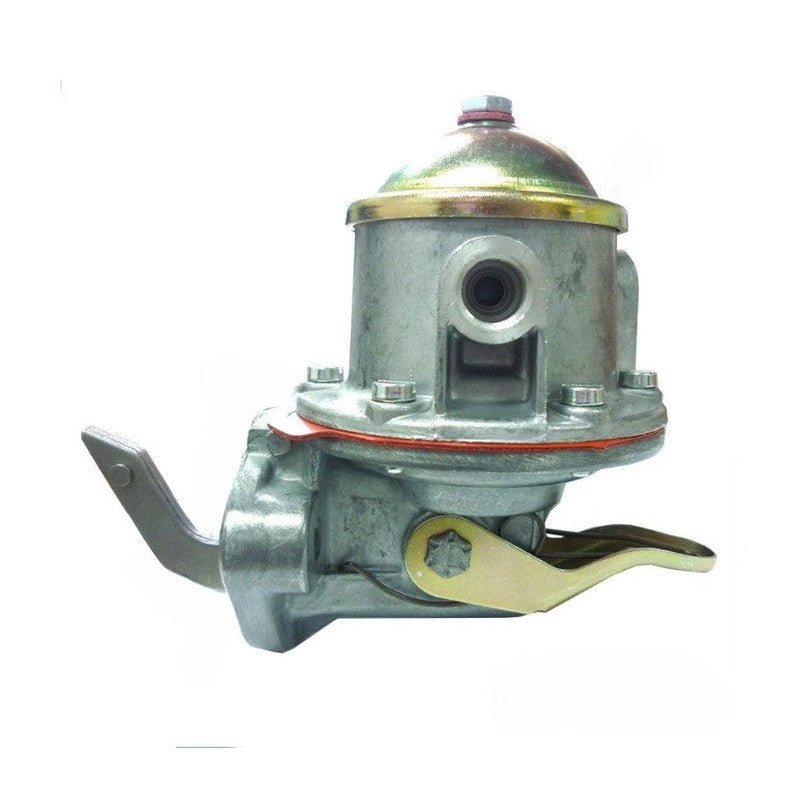

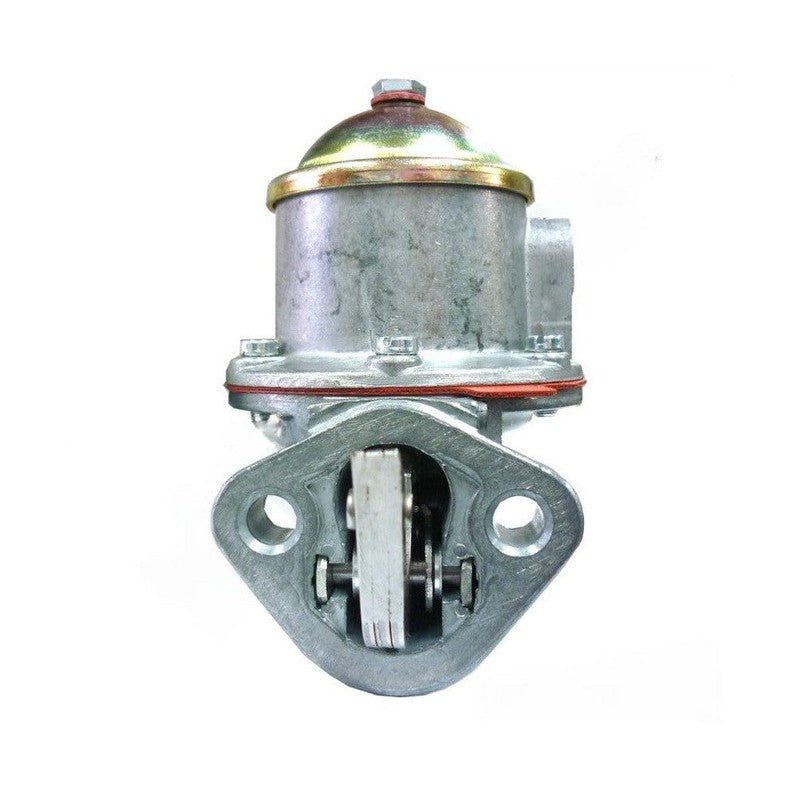

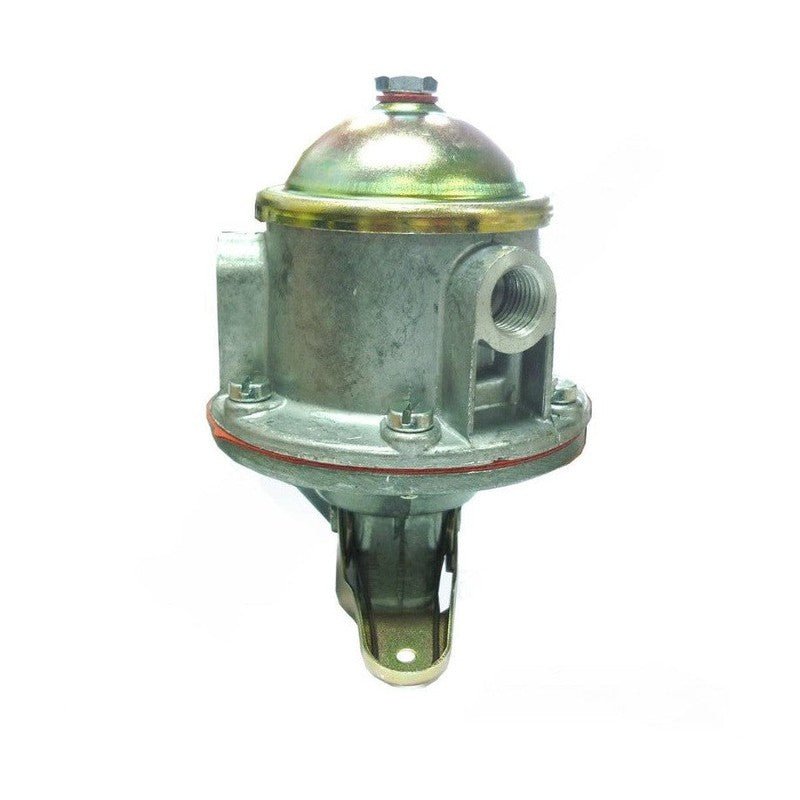

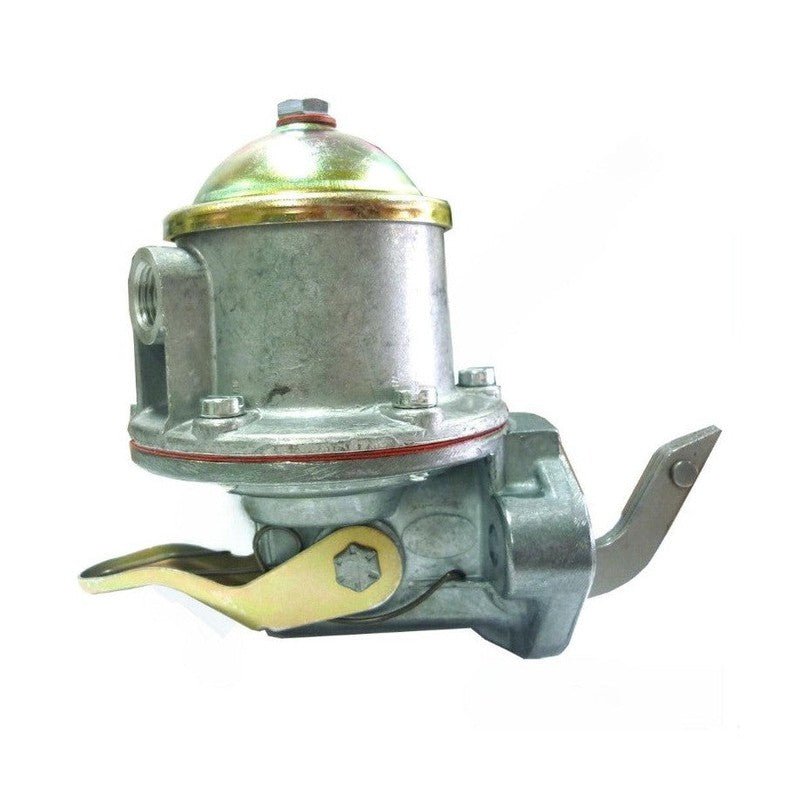

Lift Pump (Perkins 6.288,6.305,6.340)
$120.00 NZD incl. GST
In stockFreight calculated at checkout
Not sure it fits?Send us your vehicle or engine details and we'll confirm before you order.
Ask about this part
- In business since 1927
- Backed by our Auckland workshop
- Capricorn preferred supplier
- Delivery across NZ and worldwide
Shipping & delivery
Freight is calculated at checkout by weight and volume. Orders over 25 kg or 2.5 m³: we'll email the freight cost after you order.
Standard delivery: 2–5 working days. Rural: 4–6 working days.
Click & Collect: we'll call to arrange a time at 77 Leonard Road, Mount Wellington, Auckland.
Outside New Zealand? Contact us for a freight quote.
Returns & warranty
Returns are handled under our refund policy. Your rights under the Consumer Guarantees Act are not affected.
For warranty claims, email sales@simmsdiesel.co.nz with proof of purchase and photos, and contact us before fitting a replacement. See warranty.
Product details
Part Number
AC 461-137, 461-263, 7950499, 7990265
AEC 78-1114, 79-1113
BCD BCD1678/2, 1678/2
Carter 60252
Delphi HFP116, HFP137, HFP263, 2641371
FCM (Imsa) AK-110
General Motors 7950770, 25061506, 25061511, 25061566, 25066405
Leyland 78997, 781114
Peugeot D34265
Platinum PL-1006
Description
Lift Pump (Perkins 6.288,6.305,6.340)
Thread In: 1/2"x20UNF
Thread Out: 1/2"x20UNF

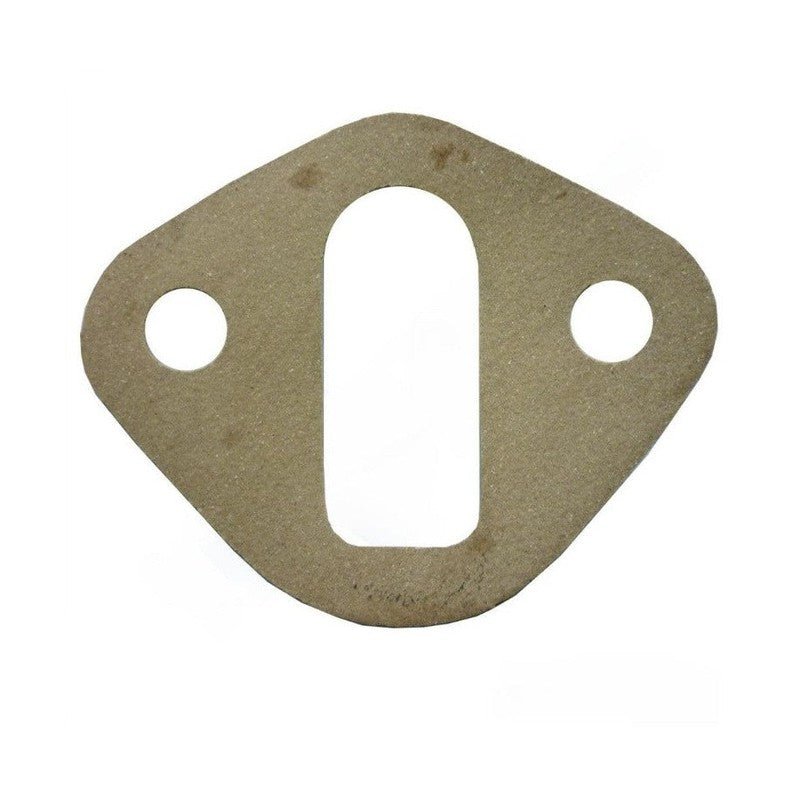

Gasket: Included
Applications
| AEC | Industrial | Perkins - 6.305, 6.340 | - |
| AEC | Industrial Motor | AEC - AV 275, 312, 319, 470E | - |
| AEC | Industrial Motor | AEC - AV 470E, 590 DPA | - |
| AEC | Industrial Motor | AEC - AV 505 LHD | -1966 |
| AEC | Industrial Motor | AEC - AV 690/5B | - |
| AEC | Reliance Express Coach | AEC - | - |
| AEC | Routemaster RCL, RMA, FRM | AEC - AV 690 -11.3L | 1965-1967 |
| AEC | Routemaster RM, RML | AEC - AV 590 -9.6L | 1958-1968 |
|
Allis- Chalmers |
BTL 12D, 14D, 16D, 20D | DPA | 1963- |
| Bristol | Titan 680, 690 | - | |
| Dodge | D405 3,5-5-6-7 Ton | Perkins - 6.305 | 1965-1970 |
| Leyland | Atlantean 680, 690 | 1958-1965 | |
| Leyland | Contractor | AEC - AV 760 | - |
| Leyland | Fleetline FE30 680, 690 | - | |
| Leyland | Leopard, Victory 680, 690 | 1965- | |
| Leyland | Industrial Motor | Leyland - 410 DPA | - |
| Leyland | Scammel 680 | - | |
| Leyland | Worldmaster 680, 690 | - | |
| Leyland | Industrial Motor | Perkins - 6.357.7 | - |
| Leyland | Industrial Motor/Marino | Perkins - 6.288, 6.306, 6.340, 4.99 | 1965- |
| Leyland | BT-69 CR, 530 City | Leyland - 760 | - |
| Leyland | R141, R142, R149, M169 | Leyland - 690 | - |
