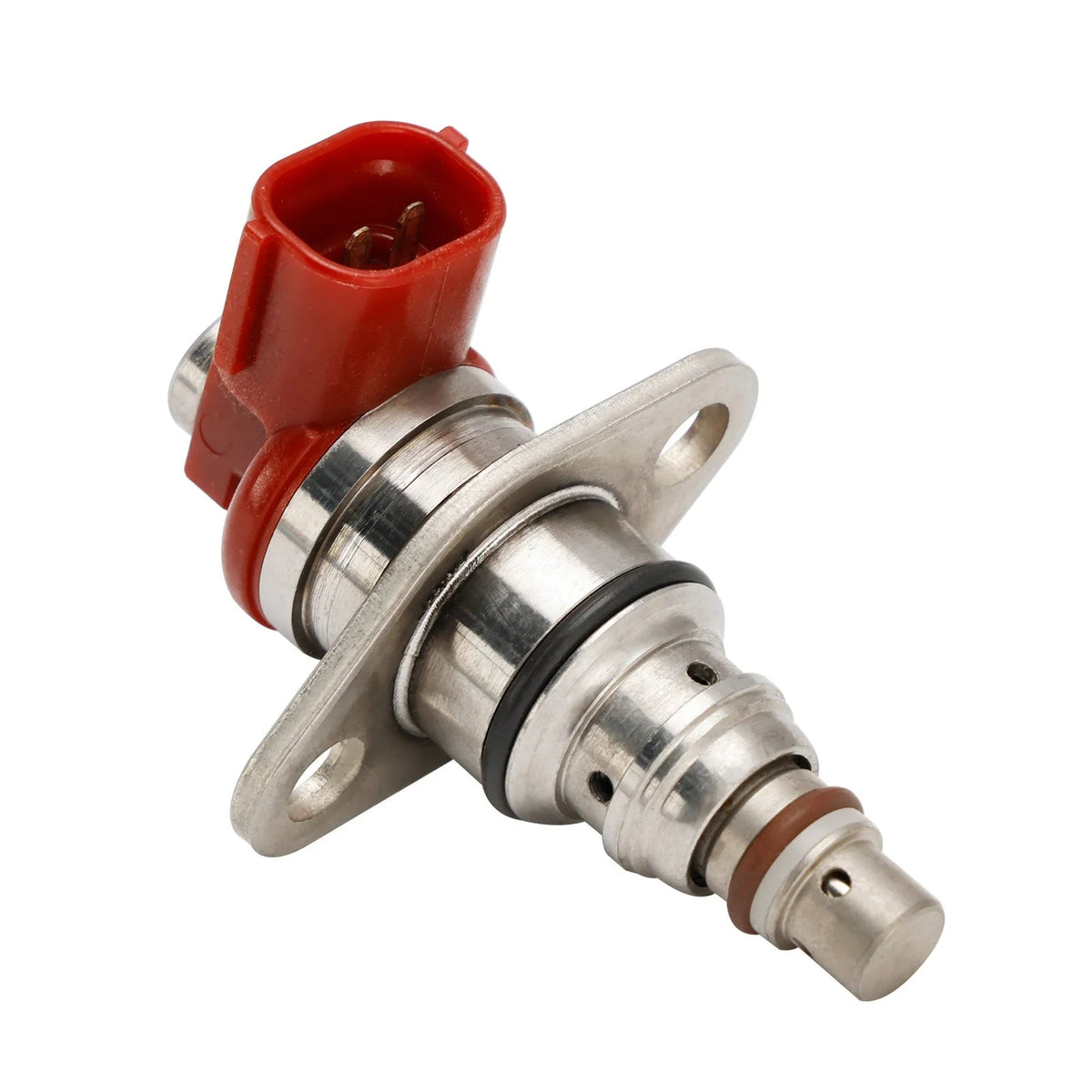

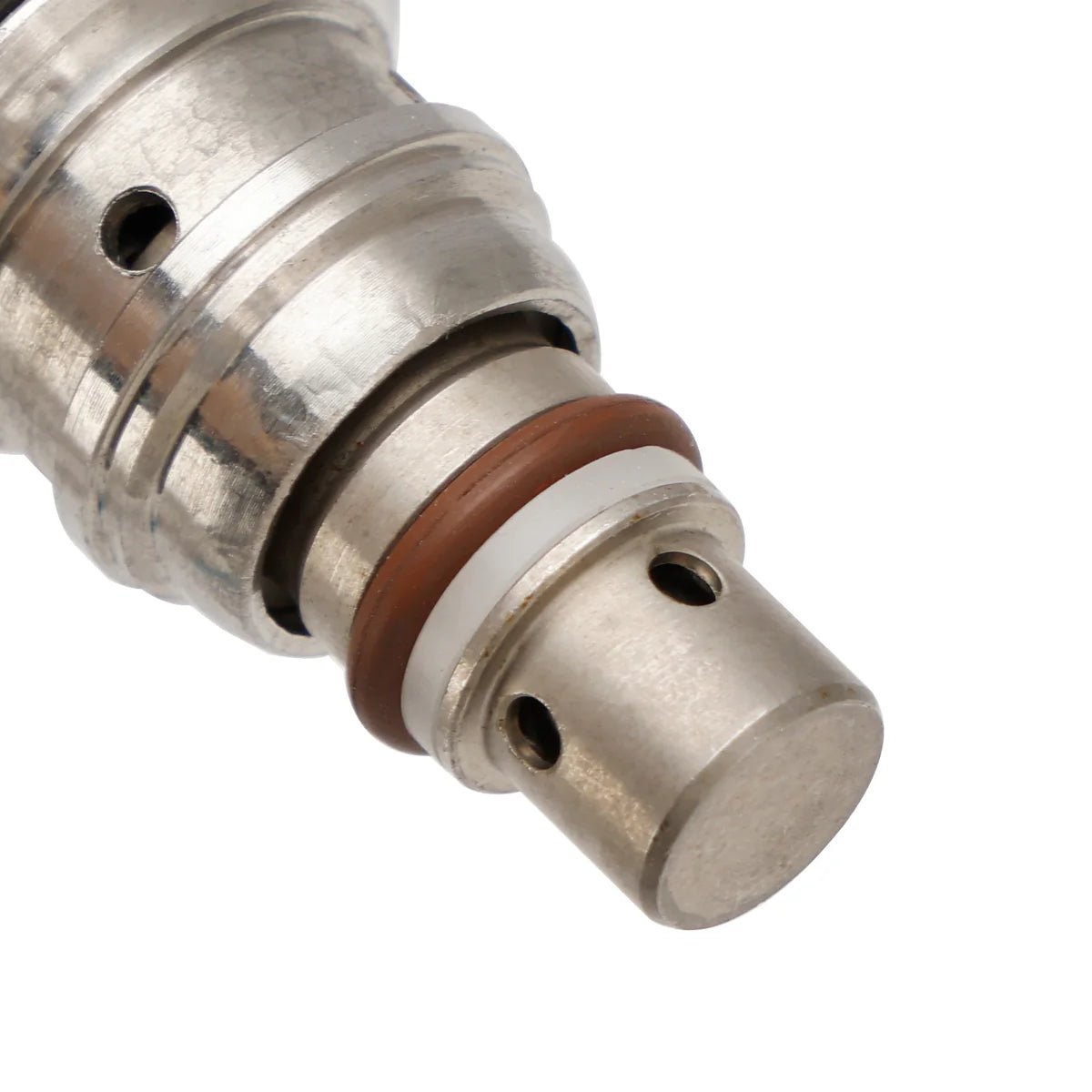

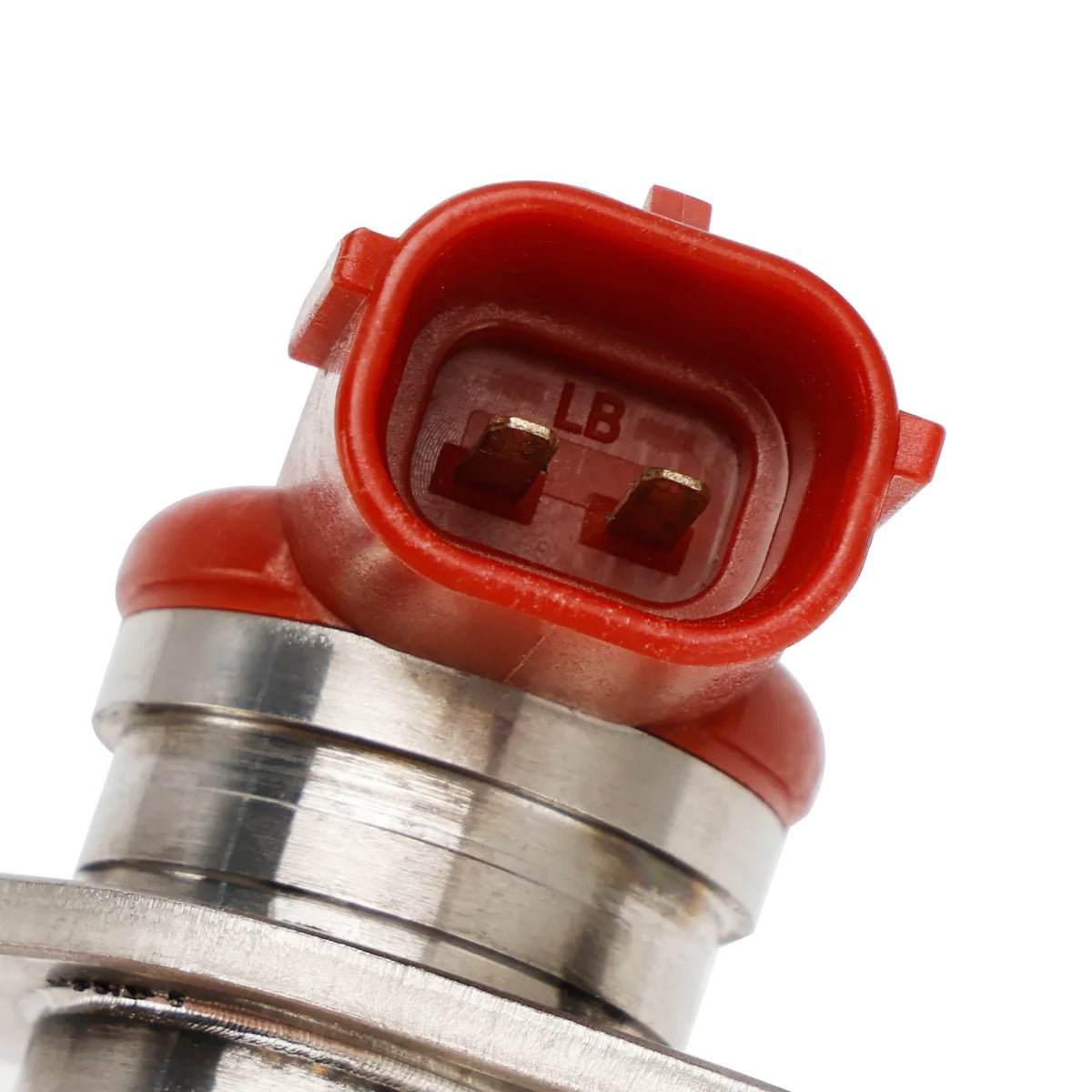

096710-0120 Common Rail suction Control Valve (SCV) RED (AFTERMARKET)
096710-0120 Common Rail suction Control Valve (SCV) RED (AFTERMARKET)
SKU 096710-0120-AM
Freight calculated at checkout.
Shipping & delivery
Delivery times
- Standard delivery: 2-5 working days
- Rural delivery: 4-6 working days
Shipping rules
- Prices exclude freight. Shipping is calculated at checkout based on weight and volume.
- Orders over 2.5m3 or 25kg: we will email the freight cost after you order. Email us first if you want a quote.
- We deliver to New Zealand street addresses only.
Click & Collect
We will phone you to confirm your order and arrange a pickup time at 77 Leonard Road, Penrose.
International orders
Please contact us for international freight rates.
Warranty & terms
12-month / 20,000 km warranty from date of invoice on new parts and exchange units. Warranty covers parts only, not labour.
Warranty does not cover:
- Modification or adjustment of the product
- Incorrect installation, operation or use
- Contamination by fuel, oil or other impurities
How to claim
Email sales@simmsdiesel.co.nz with proof of purchase, a description of the issue and photos if possible. Please contact us before fitting a replacement.
Product details
Part number
096710-0120
Pump application
097300-001#
097300-002#
097300-004#
097300-005#
097300-007#
Application
NISSAN ALMERA TINO 2.2 dCi 08.2000 - 02.2006 2.2L 84KW/115PS YD22DDTi
NISSAN PRIMERA 2.2 Di 03.2002 - 05.2007 2.2L 93KW/126PS YD22DDT
NISSAN PRIMERA Estate 2.2 Di 03.2002 - 04.2003 2.2L 93KW/126PS YD22DDT
NISSAN PRIMERA Hatchback 2.2 Di 07.2002 - 05.2007 2.2L 93KW/126PS YD22DDT
NISSAN X-TRAIL 2.2 DCi FWD 06.2001 - 09.2003 2.2L 84KW/114PS YD22ETI
NISSAN X-TRAIL 2.2 Di 4x4 07.2001 - 10.2005 2.2L 84KW/114PS YD22ETI
OPEL Signum CC 3.0 V6 CDTI 09.2005 - 12.2008 3.0L 135KW/184PS Z 30 DT
OPEL Signum CC 3.0 V6 CDTI (F48) 05.2003 - 07.2005 3.0L 130KW/177PS Y 30 DT
OPEL Vectra C Caravan 3.0 V6 CDTI 08.2005 - 08.2008 3.0L 135KW/184PS Z 30 DT
OPEL Vectra C Caravan 3.0 V6 CDTI 10.2003 - 07.2005 3.0L 130KW/177PS Y 30 DT
OPEL Vectra C CC 3.0 CDTI 06.2003 - 07.2005 3.0L 130KW/177PS Y 30 DT
OPEL Vectra C CC 3.0 CDTi 08.2005 - 08.2008 3.0L 135KW/184PS Z 30 DT
OPEL Vectra C Saloon 3.0 CDTi 08.2005 - 08.2008 3.0L 135KW/184PS Z 30 DT
OPEL Vectra C Saloon 3.0 CDTI 06.2003 - 07.2005 3.0L 130KW/177PS Y 30 DT
RENAULT ESPACE IV 3.0 dCi 01.2006 - ... 3.0L 133KW/181PS P9X 715
RENAULT ESPACE IV 3.0 dCi 09.2005 - ... 3.0L 120KW/163PS P9X 701
RENAULT ESPACE IV 3.0 dCi 11.2002 - ... 3.0L 130KW/177PS P9X 701
RENAULT VEL SATIS 3.0 dCi 06.2002 - ... 3.0L 130KW/177PS P9X 701
RENAULT VEL SATIS 3.0 dCi 06.2006 - ... 3.0L 133KW/181PS P9X 715
SAAB 9-5 3.0 TiD 07.2001 - 12.2009 3.0L 130KW/177PS D308L
SAAB 9-5 Estate 3.0 TiD 07.2001 - 12.2009 3.0L 130KW/177PS D308L
TOYOTA AVENSIS 2.0 D-4D 10.1999 - 02.2003 2.0L 81KW/110PS 1CD-FTV
TOYOTA Avensis Estate 2.0 D 09.2002 - 02.2003 2.0L 85KW/115PS 1CD-FTV
TOYOTA Avensis Estate 2.0 D-4D 10.1999 - 02.2003 2.0L 81KW/110PS 1CD-FTV
TOYOTA AVENSIS Liftback 2.0 D 09.2002 - 02.2003 2.0L 85KW/115PS 1CD-FTV
TOYOTA AVENSIS Liftback 2.0 D-4D 10.1999 - 02.2003 2.0L 81KW/110PS 1CD-FTV
TOYOTA Avensis Verso 2.0 D 08.2001 - 08.2005 2.0L 85KW/116PS 1CD-FTV
TOYOTA COROLLA 2.0 D-4D 05.2003 - 02.2007 2.0L 85KW/116PS 1CD-FTV
TOYOTA COROLLA 2.0 D-4D 09.2000 - 11.2001 2.0L 66KW/90PS 1CD-FTV
TOYOTA COROLLA Compact 2.0 D-4D 09.2000 - 01.2002 2.0L 66KW/90PS 1CD-FTV
TOYOTA Corolla Estate 2.0 D-4D 09.2000 - 10.2001 2.0L 66KW/90PS 1CD-FTV
TOYOTA COROLLA Liftback 2.0 D-4D 09.2000 - 01.2002 2.0L 66KW/90PS 1CD-FTV
TOYOTA LAND CRUISER 3.0 D-4D 07.2004 - 08.2009 3.0L 122KW/166PS 1KD-FTV
TOYOTA LAND CRUISER 3.0 D-4D 09.2002 - 07.2009 3.0L 120KW/163PS 1KD-FTV
TOYOTA LAND CRUISER 3.0 D-4D 09.2002 - 07.2009 3.0L 127KW/173PS 1KD-FTV
TOYOTA LAND CRUISER 90 3.0 D-4D 4WD 08.2000 - 08.2002 3.0L 120KW/163PS 1KD-FTV
TOYOTA PREVIA 2.0 D-4D 03.2001 - 01.2006 2.0L 85KW/116PS 1CD-FTV
TOYOTA RAV 4 II 2.0 D 4WD 05.2001 - 11.2005 2.0L 85KW/116PS 1CD-FTV
VAUXHALL Signum 3.0 CDTi 05.2003 - 05.2008 3.0L 130KW/177PS Y 30 DT
VAUXHALL Signum 3.0 V6 CDTI 07.2005 - 06.2008 3.0L 135KW/184PS Z 30 DT
VAUXHALL Vectra Mk II CC 3.0 CDTi 08.2005 - 07.2008 3.0L 135KW/184PS Z 30 DT
VAUXHALL Vectra Mk II CC 3.0 V6 CDTI 06.2003 - 08.2005 3.0L 130KW/177PS Y 30 DT
VAUXHALL Vectra Mk II Estate 3.0 CDTi 08.2005 - 07.2008 3.0L 135KW/184PS Z 30 DT
VAUXHALL Vectra Mk II Estate 3.0 V6 CDTI 10.2003 - 08.2005 3.0L 130KW/177PS Y 30 DT
