• P553201 Donaldson Fuel Filter Water Separator Spin - On Twist&Drain replaces Racor Separator S3201 - Simms Diesel
1 1

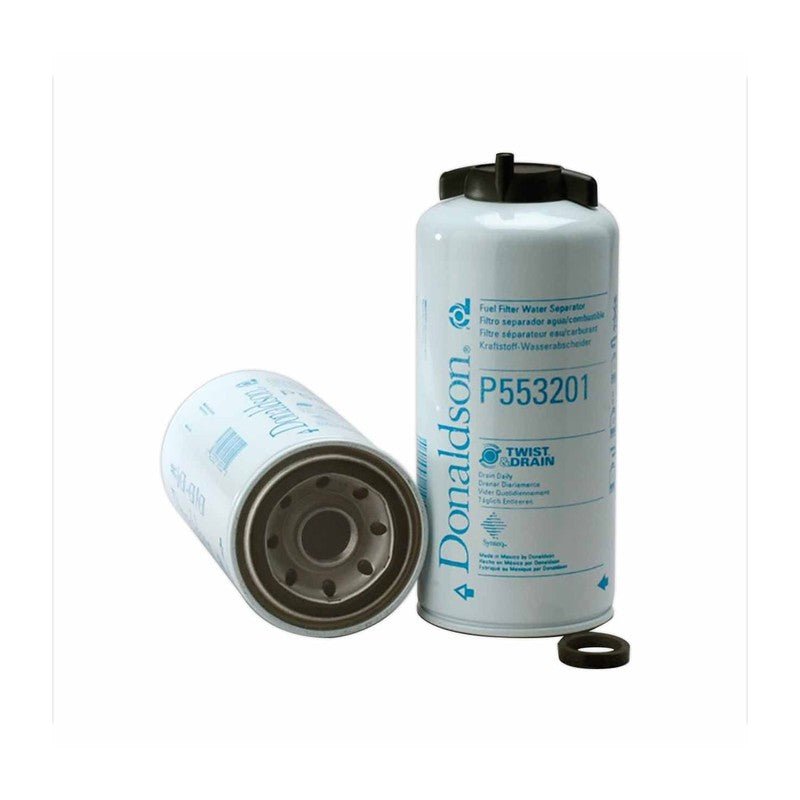

P553201 Donaldson Fuel Filter Water Separator Spin-On Twist&Drain replaces Racor Separator S3201

Sku:

Available to order

Description

P553201 Donaldson Fuel Filter Water Separator Spin-On Twist&Drain Replacement for:
Racor Separator S3201
Bluebird, Ford, Freightliner, International Buses & Trucks; Hamm Rollers;
Hyundai & Liebherr Equipment; Optional on Cummins Engines

Cross Reference:
Baldwin BF1249
Alliance ABPN/N10G-FS1242; Bomag 31701061, 31701062;
Cummins 3355903, 3353904; Hamm 1236385;
John Deere RE61554; Kobelco YN02PU1004S002;
Liebherr 7381816; Massey Ferguson 108615W1, 108614W91; Nissan FL6442N

Specifications:
Outer Diameter 93mm (3.66 inch)
Thread Size 1-14 UN
Length 219.3mm (8.63 inch)
Gasket OD 72mm (2.83 inch)
Gasket ID 62mm (2.44 inch)
Efficiency 99% 10 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 95.00 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain
Media Type Composite
Primary Application Racor S3201

Package Dimensions:
Gross Length 3.7" (9.4cm)
Gross Width 3.65" (9.3cm)
Gross Height 8.65" (22cm)
Gross Weight 1.31lb (0.59kg)

Donaldson Fuel Filters
Donaldson Diesel Fuel Filters are uniquely designed to protect injectors and pumps and keep engines and heavy-duty Equipment running smoothly. Today‘s diesel engines need to maintain high performance levels to remain compliant with stringent emissions regulations. Fuel filtration plays a key role, with current high presSure common rail fuel injectors operating at pressures up to 2,000 - 3,100 bar / 30,000 - 45,000 psi. Clean fuel helps minimize expensive repairs and unplanned downtime. Donaldson offer fuel filtration products to protect your fuel systems – including injectors, pumps and engines. We offer a complete line of Fuel Filters for popular on and off-road applications. Spin-Ons and Cartridges are available in a wide range of filter medias.

Donaldson Air / Oil Separators
Donaldson air-oil separators efficiently remove oil mist from compressed air while maintaining low pressure drop and maximum airflow.
